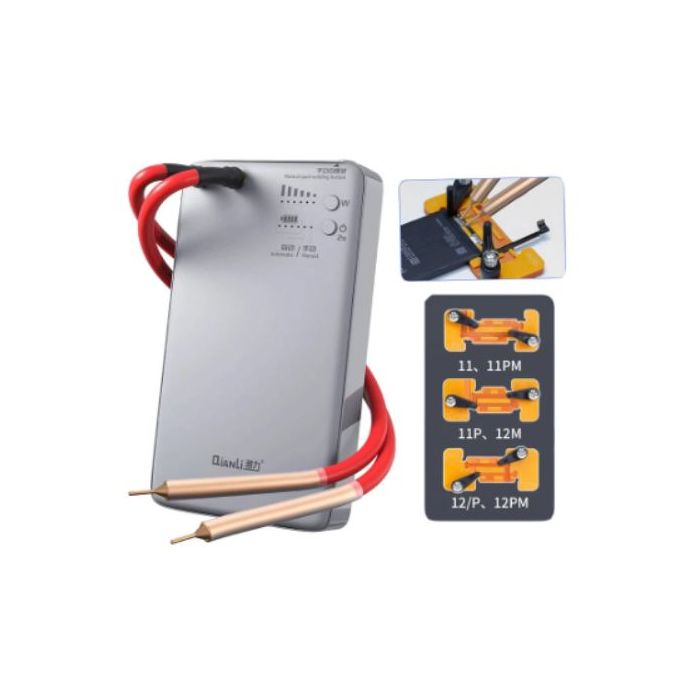

QianLi Macaron Portable Spot Welding Machine

The Qianli Macaron Spot Welder is used to solder the battery protection board of the iPhone Battery, recommended to use with Qianli Copy Power.

For iPhone XS and later models, when a third-party battery or a genuine replacement battery is replaced by a third-party repair shop, the battery health of setting will show a warning about being ''Unable to verify this iPhone has a genuine iPhone battery''. The solution for that is to swap the original battery protection board (BMS Board) to the new battery.

1. If your old battery health is over 90%, it needs 2~3 weeks to recovery
2. If your old battery health is lower than 80%, it is difficult to get it back to 100%.
3. If we use high capacity battery cell, and old battery health over 90%, it just need 3~5 days which could back to 100%.

Batteries under 80% will go up over 90% after some time. It increases after times cycling.
The easiest way is use flex cable, but programming machine will save the cost and works just as well.

● Set with specialized fixtures for iPhone BMS board

● 6 Levels of output power setting for more precise soldering

● Auto/Manual welding mode switch

Specialized Fixtures for iPhone BMS Board
Fix the board and battery to avoid any shaking during spot welding
- 11 & 11 Pro Max
- 11 Pro & 12 mini
- 12 & 12 Pro & 12 Pro Max

Certification: CE
Dimensions: 91.7*158.6*25mm
Max. Welding Thickness: 0.1-0.15mm
Usage: Phone battery repair
Weight: 0.6kg
Application: for phone battery spot
Welding USE: for iPhone 11/12 Series Battery Flex Soldering
Battery type: Rechargeable polymer lithium batteries
Battery capacity: 1000mAh
Output Voltage: 4.2V(MAX)
Input Parameters: 5V/2A
Output Current: 650A(MAX)
Input interface: TYPE-C
Nickel strip thickness: 0.1-0.15mm
